Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use

Place of Origin : Henan, China

Brand Name : HUAGONG

Price : 500~15000 USD/SET

Model Number : MH

Certification : CE

MOQ : 1 SET

Payment Terms : T/T

Delivery Time : 10 Days

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Engine, Bearing, Gearbox, Motor

Application : Outdoor

Rated Loading Capacity : 0.5~5t

Max. Lifting Height : 2.8~4m

Warranty : 1 Year

Weight (KG) : 1200 kg

Power supply : Customer request

Control method : Remote Controller and ground control

Color : Clients' Requirments

Lifting speed : Variable Speed (standard)

Crane feature : High Efficiency

Lifting mechanism : Wire Rope Electric Hoist

Material : Structural Steel

Supply Ability : 100SET/MONTH

Packaging Details : Wooden Box

Contact Now

Worm Wheel Height Adjustable Gantry Crane - Manual Operation
This manual worm wheel height adjustable gantry crane offers precise control and reliable performance for industrial material handling applications. Designed for operations requiring flexible height adjustment and manual control.
The performance excellence
The gantry has a fullrange of mobility. easy to installation and disassembly. covering a small area, with grade adjustable height (The maximum adjustable heightis 4 meters), precise positioning. easy to operate, reasonable steel structure design withstand the weight from 1000 -5000kg . If the height of the plant is limited, the low headroom electric hoistis available for
low altitude operation.
Suitable occasions
Flat ground, warehouse, logistics center, production workshop, laboratories, clean rooms, etc.
Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use

Height Adjustable Manual Operation Gantry Crane with 0.5~5t Capacity for Outdoor Use

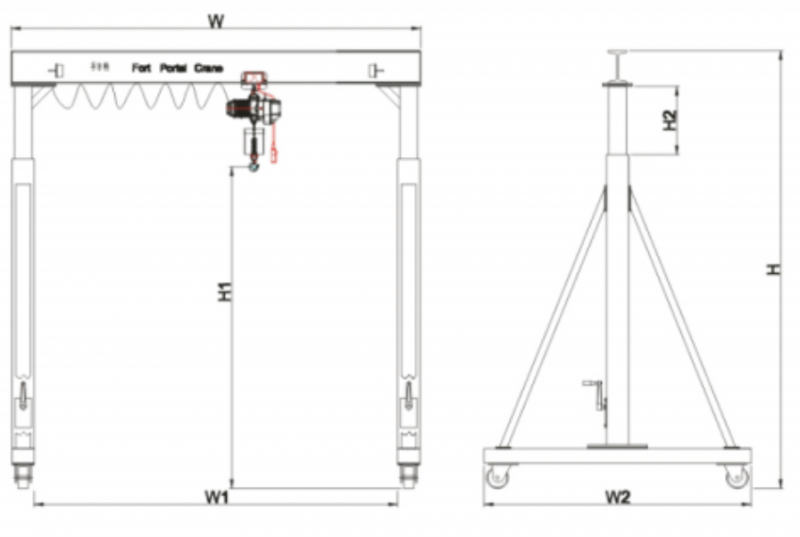

Type Capacity Equipment Width(mm) Height(mm) Lift Height(mm) AdjustableHeight Range(mm) Configuration and Size Description
W W1 W2 H H1 H2
FT3-0.5 0.5T 4000 3800 1500 2800-4000 2100-3300 1200 The manul gantryis equipped with universal wheels with brake devices;Electric operation is optional;According to the actual demand,the height, the width and the adjustable height range can be customized.
FT3-01 1T 4000 3760 1500 2800-4000 2000-3200 1200
FT3-02 2T 4000 3700 1500 2800-4000 1850-3050 1200
FT3-03 3T 4000 3700 1500 2800-4000 1700-2900 1200
FT3-05 5T 4000 3640 1500 2800-4000 1500-2700 1200
Precise worm wheel mechanism for smooth height adjustment
Manual operation for controlled lifting and positioning
Adjustable height capability for versatile applications
Robust gantry structure for stable material handling
Ideal for workshops, warehouses, and manufacturing facilities
